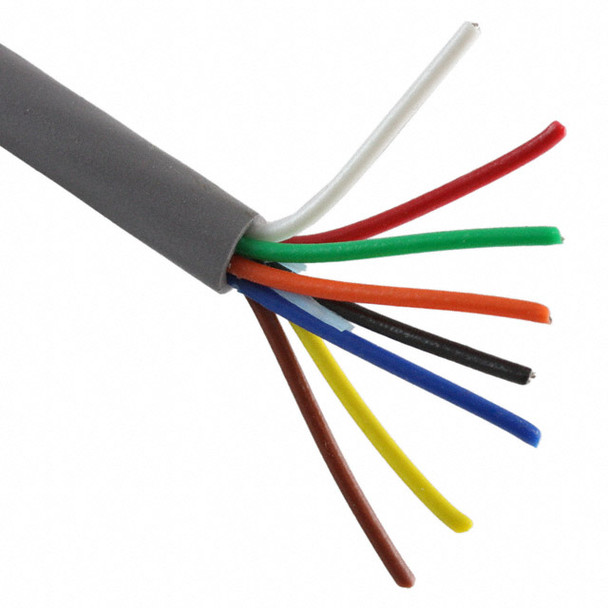

__72692.1698940505.JPG?c=2 "Alpha Wire 1178L SL002 Cable 8Cond 22Awg Slate 500' | American Cable Assemblies")
__72692.1698940505.JPG?c=2&imbypass=on "Alpha Wire 1178L SL002 Cable 8Cond 22Awg Slate 500' | American Cable Assemblies")
__72692.1698940505.JPG?c=2 "Alpha Wire 1178L SL002 Cable 8Cond 22Awg Slate 500' | American Cable Assemblies")
Description
Specifications
| RoHS Compliant | Yes |
|---|---|
| Package | Spool |
| Series | - |
| Product Status | Active |
| Voltage | 300 V |
| Features | - |
| Wire Gauge | 22 AWG |
| Operating Temperature | -20°C ~ 75°C |
| Length | 500.0' (152.4m) |
| Cable Type | Multi-Conductor |
| Usage | Communication, Control |
| Number of Conductors | 8 |
| Conductor Strand | #7/30 |
| Jacket Color | Slate |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Ratings | - |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Diameter | 0.220" (5.59mm) |
| Jacket (Insulation) Thickness | 0.0250" (0.635mm) |
| Shield Type | - |
| Datasheet |  View (PDF) |
