Description

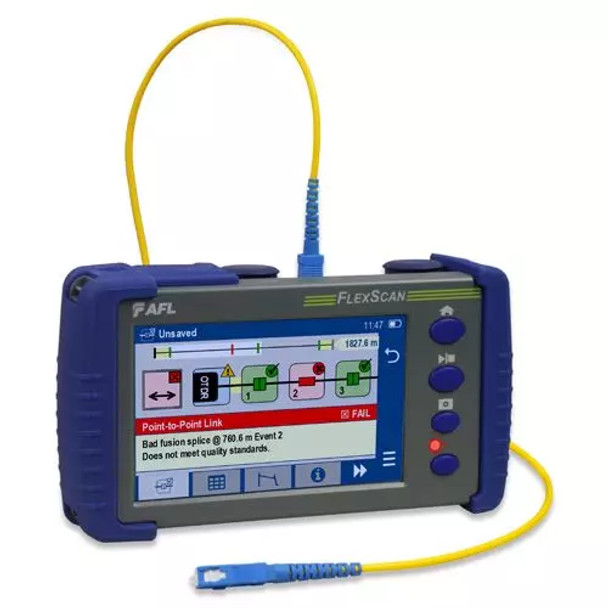

The AFL FS300-325-MMPO-P1-W1-A-ENG-US-F MMF MPO Test Kit offers a Quad OTDR with Bluetooth/WiFi, Wave ID optical light source, power meter, and multimode multi-fiber switch. It can be used for testing multimode 850/1300nm, single mode 1310/1550nm, point-to-point networks and FTTH PONs/Passive Optical LANs (POLANs). The OTDR features SmartAuto multi-pulse acquisition, 37dB dynamic range, best-in-class 20m PON dead zone, 5" 800x480 touchscreen display, 4GB internal memory, plus icon-based LinkMap and Trace views. The bi-directional MMF MPO switch converts a single port tester into a multi-fiber tester. A fiber ring connects FlexScan to Switch, and a launch cable will connect Switch to a MPO-terminated multi-fiber network.
The kit includes a Quad OTDR with VFL, OPM and OLS, MMF MPO switch, battery, AC charger, carry strap, SC/2.5mm connector adapters, USB cable, 150m fiber ring, launch cable, TRM 3.0, and soft carry case.
The kit includes a Quad OTDR with VFL, OPM and OLS, MMF MPO switch, battery, AC charger, carry strap, SC/2.5mm connector adapters, USB cable, 150m fiber ring, launch cable, TRM 3.0, and soft carry case.
