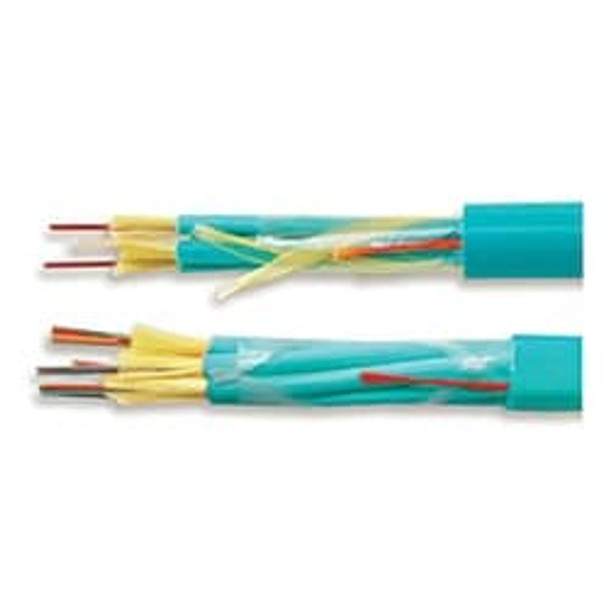

The Microarray Breakout cable from Superior Essex is designed for high performance in a small package. The design consists of 12-fiber 3 mm microarray interconnect cable subunits, each of which contain twelve 250 micron fibers. The aramid yarns inside the subunit allow the subunit to be crimped directly onto an MTP/MPO connector. The 3 mm subunits are stranded around a central strength element that is both flexible and robust enough to pass backbone installation requirements. The stranded subunits a re held to the strength element core by binder yarns and/or tapes ensuring excellent temperature performance. Finally, a RoHS-compliant flexible jacket protects the core from the rigors of installation while providing riser or plenum fire protection. T he cable is available with TeraFlex single-mode, and laser-optimized 50/125 micron 10G/150 (OM2+), 10G/300 (OM3) and 10G/550 (OM4) multimode fiber types.
Specifications:
| Armored: |
NO |
| Cable Type: |
LOOSE TUBE |
| Fiber Count: |
48 |
| Fiber Type: |
OM4 LAZER-OPTIMIZED 50 MICRON, 10 GIG TO 550 METER |
| Fire Rating: |
RISER |
| UNSPSC Code: |
26121607 |
Product Spec Sheet (PDF)
