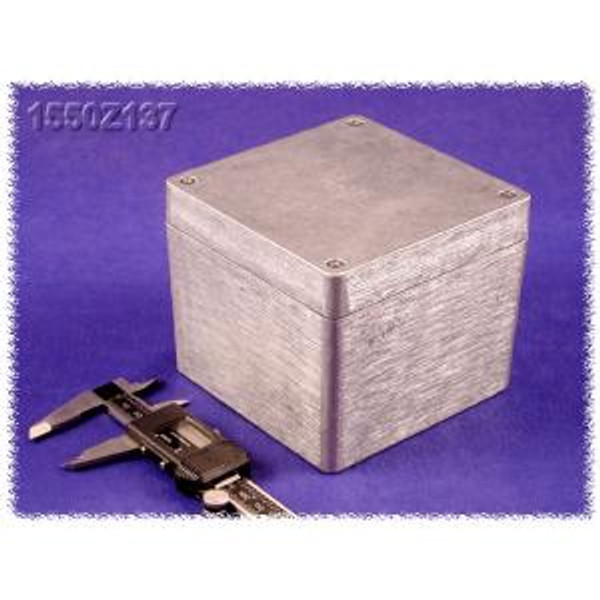

Hammond Manufacturing 1550Z137 Diecast Aluminum Enclosure

Key Features:

• Very economical - thick wall - diecast aluminum - watertight electronic instrument enclosure.
• Rugged, diecast aluminum alloy (tough - yet easy to machine),
• Two piece "tongue & groove" construction for protection against access of dust and water.
• Ideal for repetitive opening and closing.
• Easy to wall mount using "through box - blind hole" construction (on all sizes except: 1550Z102, 1550Z115 & 1550Z120). Access to blind holes is outside of gasket ring for superior protection (see photo features below).
• Unpainted version is vibra finished for a smooth surface with no sharp edges.
• Textured black version is coated with tough polyester powder for a lasting finish, even after machining. Finish is applied to the entire enclosure (inside & out).
• Lid secured with either two, four or six (count varies with size) stainless steel, Philips head, counter sunk, machine screws - into factory tapped holes.
• Lid screws are outside the gasket protection area to eliminate the need for "O" rings on the screws.
• On six sizes (the 1550Z107, 1550Z108, 1550Z116, 1550Z117, 1550Z137 & 1550Z139) lid screws are self captivating. The lid holes are slightly undersized & threaded with the first installation of the self tapping - lid screws (see photos)). Enclosure holes are pre-tapped.
• Designed to meet IP66 (NEMA 1, 4, 4X, 12 & 13 ratings.  Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove.
• Gasket has a temperature rating of -40C to +150C
• North American Mark of Safety - cUL & UL listed. Certified to NEMA 4X standards - File #E71073
• All sizes except 1550Z101** carry an impact rating of IK08 per IEC62262
• No internal ribs for easy installation of connectors without interference or additional milling.
