Description
Key Features:

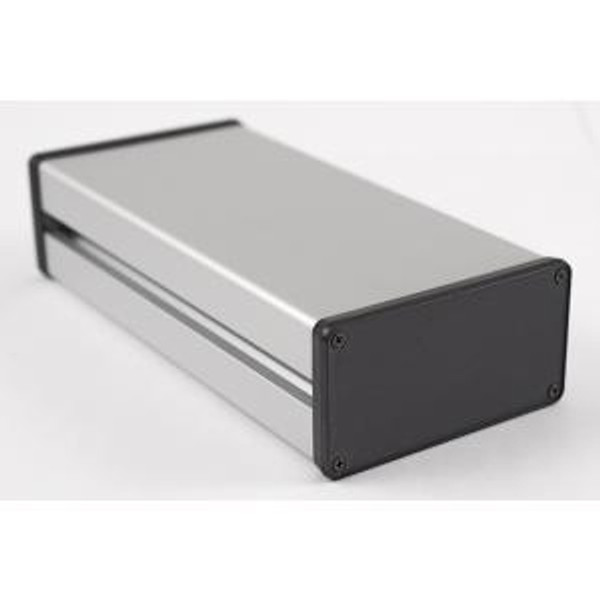

- Designed to house P.C. boards or equipment - for easy enclosure mounting to aluminum channel.
- Two versions to choose from (open bezel with metal endplates OR solid ABS plastic bezel ).
- Sized for P.C. boards with 92mm (min.) to 98mm (max.) width. Enclosures will not accept & were not designed for 100mm wide eurocard.
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
- Rugged one piece body - constructed from extruded aluminum with a minimum thickness of .09" (2.29 mm).
- Extruded body & aluminum endplates (on metal endplate version) are clear anodized.
- Open bezel - metal endplate version includes eight (8) clear zinc plated assembly screws. NOTE: Recommended screw torque is 5 lbf/in
- Solid bezel version includes eight (8) black assembly screws. NOTE: Recommended screw torque is 5 lbf/in.
Specifications
| Packaging Type | shrink wrap |
|---|---|
| Material | Aluminum (Extruded) |
| Color | Clear (Anodize) |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Channel Mount Enclosure |
| Max. P.C. Board Length (mm) | 219 |
| Max. P.C. Board Width (mm) | 99 |
| Drawing Sheet | Download Drawing Sheet |
